Handheld Oscilloscope 320*240 Resolution 2.4inch TFT Display 2.5MHz Sample Rate 500KHz Bandwidth Oscillometer With one-button waveform saving feature. Only part of waveform that is currently being displayed can be saved. Waveform measurements display functions that can be used to detect sinewaves, waves, half-waves, sink pulse waves, etc. 2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves). Equipped with a 2.4-inch TFT display, 320*240 resolution, you can see measurement data displayed on screen. With complete trigger function (single, normal, automatic), no matter for periodic analogue signal or non-periodic digital signal can be used freely. measurement of voltage signal is to ±400V. Widely applicable, it can be used in a wide ranges of applications such as automotive maintenance, appliance maintenance, teaching, and research. efficient one-click AUTO function displays measured waveform without tedious adjustment.<br><br>This oscilloscope has .4-inch TFT display, 320*240 resolution, you can see measurement data displayed on screen. 2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves). efficient one-click AUTO function displays measured waveform without tedious adjustment. Waveform measurements display functions that can be used to detect sinewaves, waves, half-waves, sink pulse waves, etc.<br><br>Specifications:<br>Duty: 0-100%<br>High configuration: 105 * 155 * 40mm / 4.13 * 6.10 * 1.57in<br>Frequency: 1K-80KHz<br>Display: 2.4" TFT 320*240 Resolution ratio<br>Standard configuration: 200g / 7.05ounce<br>Measuring ranges: X1/40V; X10/400V<br>Firmware upgrade: Support<br>Package weight:<br>Analogue bandwidth: 500KHz<br>Battery capacity: 1 * 3.7V, 600mAh (included)<br>Model number: SCO_1_500K<br>Name: Handheld Oscilloscope<br>Function: 17 Waveforms<br>Upper computer: Not supported for now<br>Voltage ranges: 0-3.3V (fix)<br>Parameter type:12<br>Voltage: 3.3V<br>Material: plastics<br>Input impedance:<br>Standard configuration: 135 * 102 * 30mm / 5.31 * 4.02 * 1.18in<br>Rate of adoption: 2.5MHz<br>Package size:<br>Frequency: 1-1KHz<br>Item size: 50 * 100mm / 1.97 * 3.94in<br>High configuration: 250g / 8.82ounce<br>Output:<br>Depth of storage:1Kb<br>Actual bandwidth: 200KH<br>Charging voltage: 5V<br>Type: standard configuration, high configuration (optional)<br>PWM output:<br><br><br>OR<br><br>Packing List (high configuration, ±400V):<br>1 * Handheld Oscilloscope<br>1 * Probe<br>1 * Clip<br><br>Note:<br>Some of measured signals cannot be correctly captured with AUTO and need to be adjusted manually.<br>Firmware upgrade: To upgrade display part, press OK to turn on machine, to upgrade bottom part, press SAVE to turn on machine.<br><br>Packing List (standard configuration, ±40V):<br>1 * Handheld Oscilloscope<br>1 * Clip

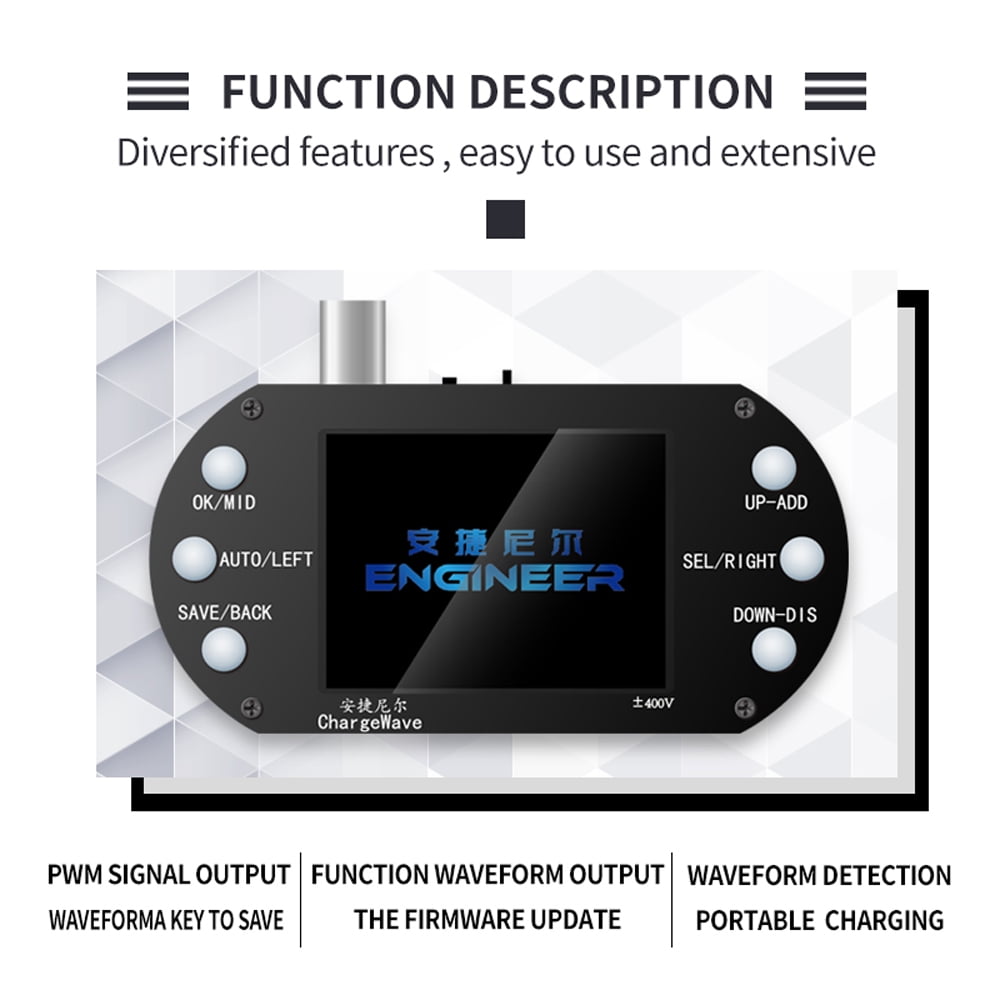

• Equipped with a 2.4-inch TFT display, 320*240 resolution, you can see the measurement data displayed on the screen.
• 2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves).
• The efficient one-click AUTO function displays the measured waveform without tedious adjustment.

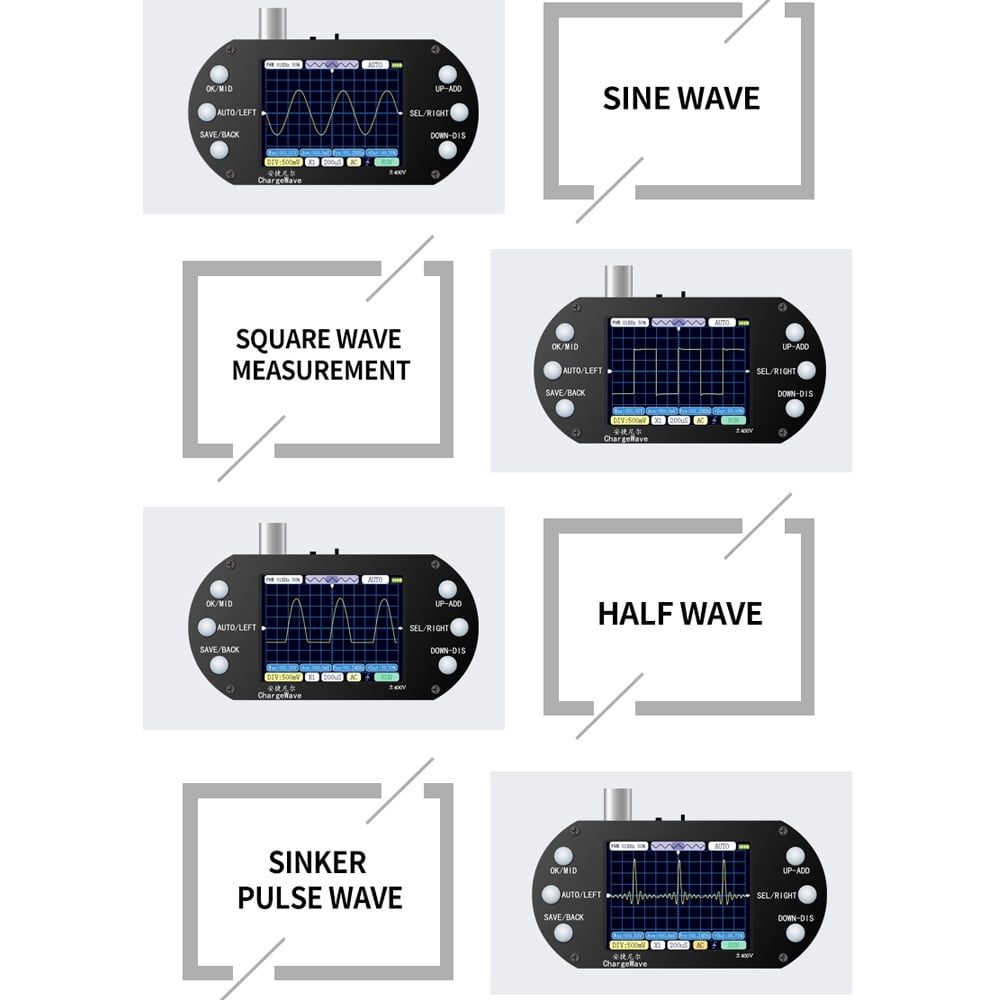

• Waveform measurements display functions that can be used to detect sinewaves, square waves, half-waves, sink pulse waves, etc.
• The measurement of the voltage signal is up to ±400V.
