PJEZC00100 Digital Temperature Controller, 115V/50/60Hz, Compressor, Fan & Defrost Management Thermostat, with NTC Probe Input, Precise Temperature Control for Commercial Freezers & Coolers
Product details
| Management number | 222319174 | Release Date | 2026/05/04 | List Price | US$32.00 | Model Number | 222319174 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

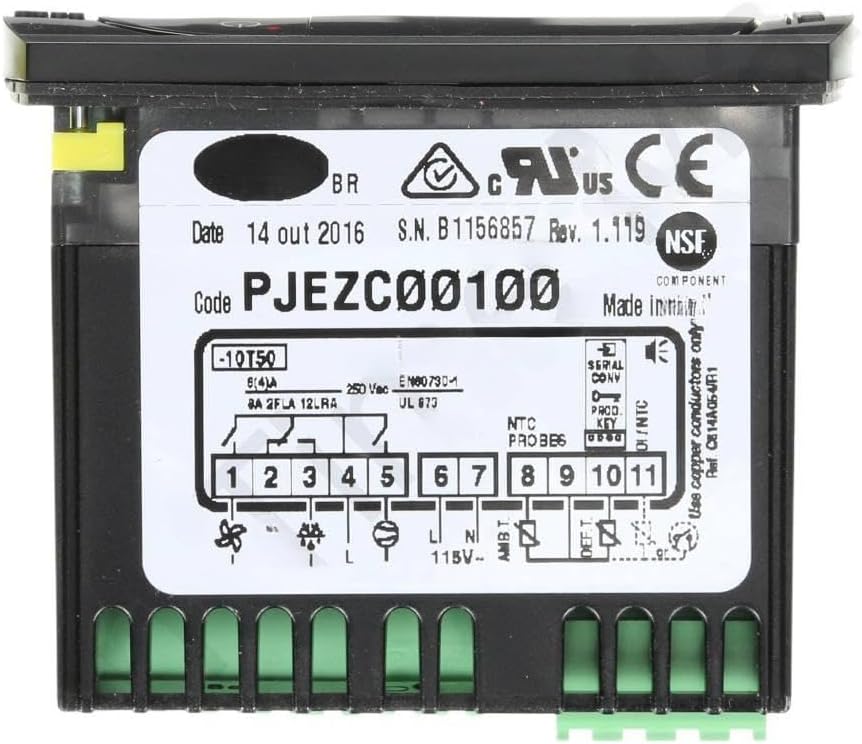

Model: PJEZC00100Electrical and Environmental SpecificationsPower Supply: 115V~ (Note: This is a 115V voltage version commonly used in North America, not 230V)Operating Temperature (T): -10T50 (i.e., -10°C to 50°C)Relay Output Specifications: 8(4)A, 8A 2FLA 12LRAWiring Definitions and Output Logic (According to Circuit Diagram)Power Supply Input:Terminal 6 (L): Live WireTerminal 7 (N): Neutral WireRelay Outputs (Refrigeration System Control):Terminals 1-2: Fan Icon (Fan)Terminals 3-4: Defrost Icon (Defrost)Terminals 4-5: Compressor Icon (Compressor) —— The label diagram indicates terminals 4 and 5 are used for compressor control.Sensor Inputs (NTC PROBES):Terminals 8 and 9: AMB.T. (Ambient/Room Temperature Probe - NTC)Terminals 10 and 11: DEF.T. (Defrost Probe - NTC)Expansion Interfaces:SERIAL CONV: Serial Conversion InterfacePROG.KEY: Programming Key Interface (for quick parameter configuration or data copying)DI / NTC: Digital Input/Probe Compatible Interface
- Durable & Reliable: Rated for industrial use with wide operating temperature range and high-load relay capacity for demanding commercial environments.
- Temperature Control Accuracy: Uses a digital microprocessor for signal processing and data display.The controller regulates the output based on sensor feedback to maintain the target temperature within the specified range and minimize fluctuation.
- Simplified Operational Process: Features an intuitive digital interface with clear displays for PV (Present Value) and SV (Set Value).Users can easily set target temperatures or adjust parameters without navigating through overly complex menus.
- Precise PID Control: Built-in high accuracy PID chip.It controls the temperature stably via Relay Output, preventing overheating or cooling issues.
- Installation Note：Please strictly verify that your power supply voltage matches the controller specifications before installation.
| Brand Name | ALOUWQR |
|---|---|
| Part Number | PJEZC00100 |
| Manufacturer | ALOUWQR |
| Included Components | 1* Temperature Controller |
